| Specification | Details |
|---|---|
| Country of Origin | Made in India |
| Product Type | 6D Popped Chips & Rice Cake Machine |
| Electric Voltage | 440V, 3 Phase (50–60 Hz) |
| Power Consumption | 9 kW (Max) |
| Heater Temperature | Min: 1°C, Max: 300°C |
| Working Capacity | 15 pcs every 10 seconds |
| Production Capacity | 5,000 – 5,500 pcs/hour (5,400 pcs based on 10 sec cycle) |
| Size of Chips | 50 × 53 mm (H) Triangle (Thickness: 2–10 mm Max) |
| Rice Cake Option | 40 mm Round (Thickness: 3–10 mm) |
| Capacity of Hopper | 14L (Holds 11 kg rice) |
| Mold Coating | Titanium Coated Mold |
| HMI Display | 7 inch HMI Touch Display |
| Extra Features | Air Compressor Included |
| Machine Body Material | Stainless Steel |
| Automation Grade | Automatic |
| Machine Size | 38" × 34" × 60" (L × W × H) |
| Machine Weight | Approx. 340 kg |
- Plot No. 62/14, Phase – 1, G.I.D.C, Vatva, Ahmedabad (Gujarat)

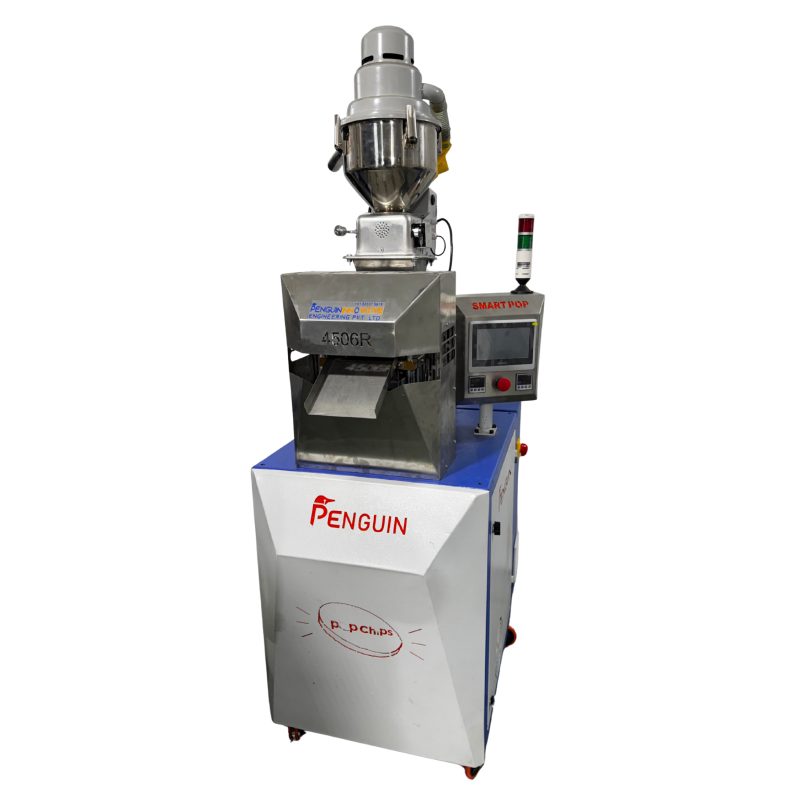

6D Popped Chips & Rice Cake Machine
6D Popped Chips & Rice Cake Machine Manufacturers in India
The 6D Popped Chips & Rice Cake Machine from Penguin Engineering is a high-performance Smart-Pop unit that produces crisp popped chips and rice cakes with speed and consistency. It combines a durable stainless steel body, a precision grain hopper, advanced 6D heating and pressing technology, and an automatic discharge system that keeps production running with minimal manual effort.
The machine works on natural ingredients alone — rice, corn, or multigrain blends — with no oil, additives, or preservatives. Controlled heat and pressure deliver uniform shape, even puffing, and consistent texture in seconds, giving you market-ready, low-fat snacks straight off the discharge tray.
Running on a 440V 3-phase supply at 9 kW, the 6D delivers 5,000 to 5,500 pieces per hour from a 14L hopper that holds 11 kg of rice. A 7-inch HMI touch display handles temperature and cycle settings, while the titanium-coated mould supports a dual output option: 50 × 53 mm triangular chips or 40 mm round rice cakes, both with adjustable 2 to 10 mm thickness. This makes it the ideal entry point for startups and growing snack brands that need factory-grade output without a factory-scale footprint.
- 6D Heating Technology: Advanced multi-station heating and pressing for even puffing across every piece.
- Oil-Free Production: Works on dry rice, corn, or multigrain blends — no oil, additives, or preservatives required.
- Dual Output Option: Switch between 50 × 53 mm triangular chips and 40 mm round rice cakes with the same machine.
- Adjustable Thickness: Chip and rice cake thickness adjustable from 2 mm to 10 mm to suit different SKUs.
- 7-Inch HMI Touch Display: Set temperature, cycle time, and batch counts from a single control panel.
- High Production Capacity: 5,000 to 5,500 pieces per hour on a continuous 10-second cycle.
- Titanium Coated Mould: Non-stick, wear-resistant mould surface for long service life and clean release.
- 14L Grain Hopper: Holds 11 kg of rice for extended unattended running between refills.
- Automatic Feeding & Discharge: Continuous flow from hopper to output tray with minimal manual intervention.
- Air Compressor Included: Supplied as standard, so the unit is ready to commission on arrival.
- Stainless Steel Body: Food-grade construction for hygiene, durability, and easy cleaning.
- Zero Wastage: Smart puffing technology maximises grain utilisation with virtually no material loss.
